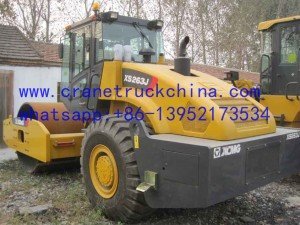

Send InquiryXCMG single drum road roller XS263J
Product Code : 196227706
Brand Name : cranetruckchina
Price And Quantity
- Minimum Order Quantity
- 1 Set
Product Description
Main specifications:
| Item | Unit | Data |
| XS263J | ||
| weight/Dimensions | ||
| Max. Operating weight | kg | 26000 |
| Front wheel weight | kg | 13000 |
| Rear wheel weight | kg | 13000 |
| line pressure | N/cm | 582 |
| Vibration frequency | Hz | 27/32 |
| Theoretical amplitude (high/low) | mm | 1.9/0.95 |
| Centrifugal force(High/Low) | kN | 405/290 |
| Speed range | ||
| Forward-I | km/h | 2.97 |
| Forward-II | km/h | 5.85 |
| Forward-III | km/h | 9.55 |
| Wheelbase | mm | 3280 |
| Vibration wheel width | mm | 2170 |
| Gradeability | 35% | |
| Min. turning radius | mm | 6800 |
| Vibration wheel diameter | mm | 1600 |
| Min. ground clearance | mm | 508 |
| Overall dimensions | mm | 6430*2470*3260 |
| Engine | ||
| model | SC8DK190.2G3 | |
| rated turning speed | r/min | 1800 |
| Output | kW | 140 |
| Specifications | ||
| Vibration pressure | Mpa | 35 |
| Steering pressure | Mpa | 16 |
Welcome to contact us to get more information of parameter and pictures.
We will quote you with our best prices, waiting for your inquiry!
