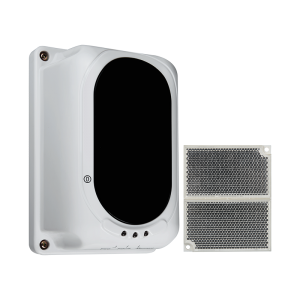

TX7130 Conventional Beam Detector
TX7130 Conventional Beam Detector
Product Code : 0000
Brand Name : thyaohua
Price And Quantity
- Minimum Order Quantity
- 1 Piece
EN54-12 ComplianceHassle free alignment, built with digital guide display and laser beam pointingEmploy single-ended design through reflective mirrorFour ranges wide monitoring from 8-100 meters via encoderThree users programing sensitivity adjustmentBuilt-in microprocessorSelf-diagnosis function can monitor for internal faultsAutomatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitterFire and Fault interfacing relaysAttractive and pleasing appearance
echnical Specification
Part Number |
TX7130 |
Standard |
|
Listed |
LPCB Approval |
Compliance |
EN54-12 |
Fire Detection and Alarm Systems |
BS 5839 Part 1 |
2002 |
|
Specification |
|
Operating Voltage |
20 V to 28 V DC |
Current Parameters |
|
Standby |
23mA |
Commission |
56mA |
Alarm |
33mA |
Beam Sensor Sensitivity [via Encoder] |
|
Level 1 |
2.6 dB High Sensitivity |
Level 2 |
3.8 dB Medium Sensitivity |
Level 3 |
5.8 dB Low Sensitivity â |
Beam Pathway Length [via Encoder] |
|
Span 1 |
8 to 20 meters Limited Path |
Span 2 |
20 to 40 meters Short Path |
Span 3 |
40 to 70 meters Normal Path |
Span 4 |
70 to 100 meters Long Path |
Beam Path Angle |
±0.4º Directional |
Alignment Guide |
Laser Beam Pointer |
Digital Display Guide |
Nixie Tube |
LED Indicator Guide |
|
Red |
Fire |
Yellow |
Fault |
Green |
Alignment |
Reset Time |
Less than 2 Second |
Relay Capacity [Fire & Fault] |
Normally Open & Close/ 2.0 A; 30 VDC |
Physical |
|
Material / Colour |
ABS / White |
Dimension / Weight |
L |
190.87 x W |
126.87 x H |
91.96 mm / 440 gm |
|
Weight |
0.130 Kg with base |
Environmental |
|
Operating Temperature |
-10°C to +50°C |
Ingress Protection Rating |
IP30 [IP66 glue seal-For permanent fixing] |
Humidity |
0 to 95% Relative Humidity, Non condensing |
