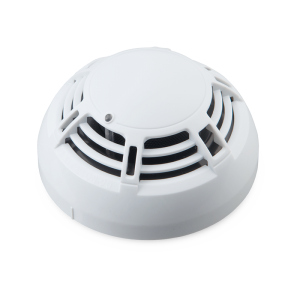

TX7120 Intelligent Smoke & Heat Detector

TX7120 Intelligent Smoke & Heat Detector
TX7120 Intelligent Smoke & Heat Detector
Send Inquiry
Product Code : 0000
Brand Name : thyaohua
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description

Technical Specification

Listed

LPCB Pending

Compliance

EN54-29

Input Voltage

24VDC [16V to 28V]

Current Consumption

Standby

0.6mA, Alarm

 4mA

Protocol/Addressing

TNA, Value range from 1 to 254

Smoke Sensitivity

As per stipulated standard

Heat Class Type

A2R

Indicator

Single LED / 360 degree Visual

Material / Colour

ABS / White Glossy finishing

Dimension / Height

Diameter 99.7 mm / 57 mm

Weight

145g (with Base), 90g (without Base)

Operating Temperature

-10°C to +50°C

Humidity

0 to 95% Relative Humidity, Non condensing

Clean

Remove the detector cover by snooping away the four sides tabs using a flat screw driver and then pulling the cover from the base.
Remove the protective screen by pulling it straight out.
Carefully vacuum the chamber and screen. If there is stain, wash with running water and ensure it is completely dry.
Position the chamber and screen by aligning three tiny holes over the sensing component.
Align the LED tube and tabs and gently pushing the cover until it locks into place.
Re-install and test the detector.
