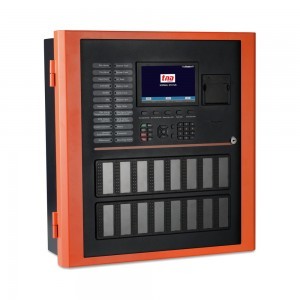

TX7004 Intelligent Fire Alarm Control Panel

- Minimum Order Quantity
- 1 Piece
1Â Feature and Benefits
Compliance EN54-2Â & EN54-4
Using advance microprocessor technology with Large memory capacity
Enhance user interface combining LCD Touch screen and keypad access
Support real time visual algorithm
Enhance false alarm prevention
Keypad and PC programming
Support Multiple interface protocol such as USB/Ethernet/Can Bus/Serial/RS485/Fiber Optic
Support Loop Powered devices for extra saving on cable cost
Built-In Printer and 160 LED Zones Indicators
2 System Capacity
1loop/2loops/4loops
Support 254 Devices/One loop (1,016 ideal)
Network up to 512 Node
Programmable Capacity
Zones up to 3000
Sounders Groups 1-1000
Other Groups 1001- 2000
Built-in 160 LED Zones Indicator
3 Commissioning Advantage
Auto Enrolling of Devices
Monitor device mismatch and dual address conflict
Command Builder to create requirements for fire event scenario
With Loop protection against power surge
One-man test with On/Off sounder
Programming Protection
4 Technical Specification
Listed |
LPCB Approval |
Input Voltage |
230VAC +10%-15%,50Hz |
Input Current Consumption |
1 A |
Panel Rating |
24VDC |
Batteries |
2 x 12V / 28AH |
Rechargeable-Lead acid type battery |
 |
Networking and Interfaces |
 |
Panel to panel communication |
Class A, Can Bus [loop]; Panel to Panel 3kms |
Number of Panels |
512 |
Interface Port |
USB, RS485Â Serial, RS232 Serial, Ethernet |
 |  |
System Capacity |
 |
Memory [Non-Volatile] |
1000 Fire Events, 10,000 General Event |
Zones |
3,000 programmable |
Total Group |
3,000 programmable |
Sounder Group |
1,000 programmable |
Common Group |
2,000 programmable |
Loop Specifications |
 |
Protocol/Addressing |
TNA, Value range from 1 to 254 |
No. of Loop |
4 Loops Class A |
Protection |
Built-in 4kV Surge protection |
Power rating |
24VDC Output/120Ma |
Cabling |
1.0Km Max Length/2 x 1.5mmòsolid core Fire resistance |
Panel Input/outputs |
 |
Programmable Relays |
4 circuits: Normally Open/Close |
Programmable Input |
1 Circuit: Power limited 24VDCÂ (for future use) |
Programmable Auxiliary Power |
Power Limited 24VDC |
Fixed Outputs |
2 Circuits: Power limited 24Vdc |
Indicator |
24 LED Status/ 160Â Zone Indicators |
Display |
7â TFT Touch Screen |
Keypad |
5 Brigade buttons and Programming Keypad |
Material / Color |
Flat sheet Metal / with outer glass door, Orange stripe |
Dimension Lx W x H |
530 mm x 490 mm x 135 mm |
Weight |
16.70 Kg |
Humidity |
0 to 95% Relative Humidity, Non condensing |
