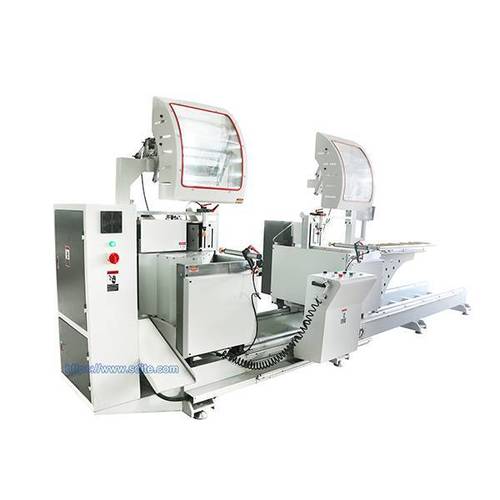

LJZ2C-550X4500 AUTOMATIC HIGH PRECISE DOUBLE HEAD MITRE SAW

LJZ2C-550X4500 AUTOMATIC HIGH PRECISE DOUBLE HEAD MITRE SAW
LJZ2C-550X4500 AUTOMATIC HIGH PRECISE DOUBLE HEAD MITRE SAW
Send Inquiry
Product Code : LJZ2C-550X4500
Brand Name : sdjtec
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
Product Description

Main Features

1. This high precision mitre saw offers a combination of the highest precision and CNC-assisted flexibility, primarily for special constructions.

2. The fixed pivot point renders any angle correction unnecessary over the entire swivel range.

3. The electronic controlled version allows automatic stepless positioning for cutting lengths as well as any angle from 15 ° to 165 °.

4. Other extras, such as the automatic opening and closing of the protective cover, facilitate handling and speed up the work processes.

5. Japan servo motor guarantees the high precision

Technical Parameters

Power 380V 50HZ
Motor power 2*3KW
Saw blade dimension 550*30
Saw blade swing angle 40°~90°
Saw cutting(W*H) 130*190mm/320*100mm
Repeat locating length =<0.1mm
Max cutting length 4500mm
Machine dimension 5600*1500*2400mm
