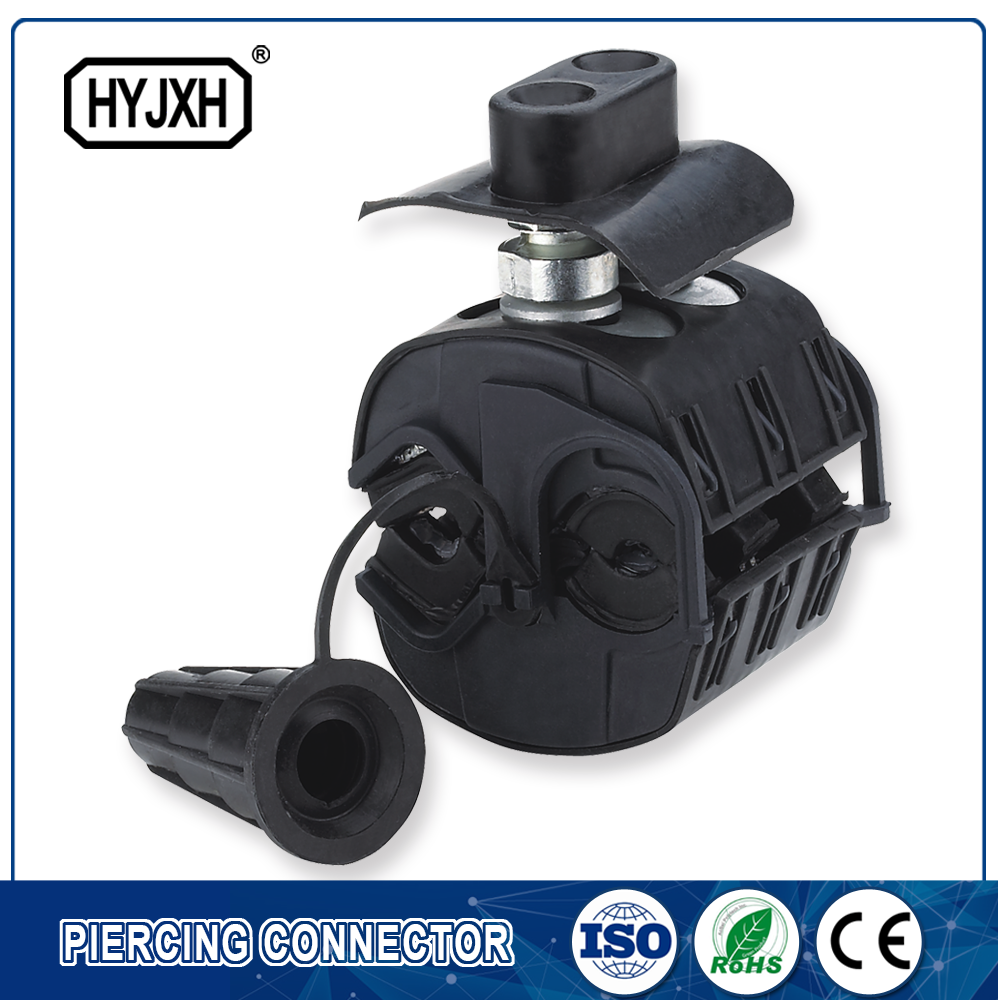

HYJ Insulation Piercing Connectors(1KV)

HYJ Insulation Piercing Connectors(1KV)
Send Inquiry
Product Code : 0000
Brand Name : niceterminal
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description


FJ6/HYJ series insulationpiercing connector is mainly used for wire branching The applicable voltage is 10kV, 1kV and less more than 1kV.It has the following function andfeatures: Simple installation. The insulated layer oflead needn’t be stripped. Put the mainline and branch line into connectorcorrectly and screw     themoment nut off with a box spanner. Small contact resistance and low temperature rising. The specially-made moment bolt guarantees constant piercing pressure     whichenable the connector to get a good electric contact without any excessiveconductor damage, and guarantee the normal    performancelife of circuitry. Sealed stunture and high surability. Theinternal adopts whole sealing structure and is filled with insulating heatconducting     grease,which improves insulating strength and security.   Wide application range . It is applicable tobranch connection of copper and  aluminum conductor, hetero-dia metricconductor,     andbutt joint  of isodiametric conductor. It is also applicable to transitionbranch connection  of copper and aluminum insulated     lead.  Remarks

1. The conductor used forinsulation piercing connector must conform with international standard.2. The installation operator mustbe familiar with installation technique.3. Please put on insulatinggloves and use insulating box spanner during hot-line work.4. The insulation piercingconnector is a kind of one-time product. Please do not use it again afterdismantling because of dental pattern     transfiguration. Application1.Installing and fixing maincable in traditional way.2. Stripping outer insulator ofmain cable for 0.6m    at partthat need part(don,t destroy insulaton    layer forphase).3.Choosing branch cable ( notmore than 3m)    whosedistance is the same as electric meter    box, andstrip insulator at two terminals.4.Installing the separatorvertically by turns (thesepatator distance is more than10cm). Mainly application:

Special for street lamp system(vertical shaft forbidden)

For connecting the buildinglights, street lamp, high building vertical shaftFor connecting the cables of highbuilding vertical shaft, outdoors overhead wire, cable trench, factory powercable.

Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Delivery Point (DP), Days after Acceptance (DA)
