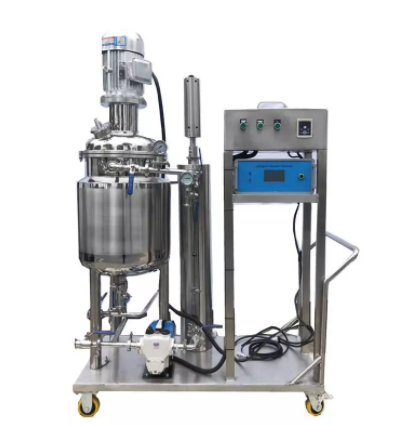

20KHZ ULTRASONIC DISPERSING HOMOEGNIZER MACHINE

Next > >

<< Previous

Get a Price/Quote

Send Inquiry

Product Code : JH

Price And Quantity

Minimum Order Quantity
100 Piece
Price
1-99999 USD ($)/Piece

Price Range
1.00 - 99999.00 USD ($)/Piece

Product Description

Ultrasonic homogenizing is a mechanical process to reduce small particles in a liquid so that they become uniformly small and evenly distributed.

When ultrasonic processors are used as homogenizers, the objective is to reduce small particles in a liquid to improve uniformity and stability. These particles (disperse phase) can be either solids or liquids. A reduction in the mean diameter of the particles increases the number of individual particles. This leads to a reduction of the average particle distance and increases the particle surface area.

JH-ZS50 series can be used for large-scale experiments and small and medium-sized industrial production.

SPECIFICATIONS:

MODEL	JH-ZS30	JH-ZS50	JH-ZS100	JH-ZS200
Frequency	20Khz	20Khz	20Khz	20Khz
Power	3.0Kw	3.0Kw	3.0Kw	3.0Kw
Input voltage	110/220/380,50/60Hz
Processing capacity	30L	50L	100L	200L
Amplitude	10~100Î¼m
Cavitation intensity	1~4.5w/cm²
Temperature control	Jacket temperature control
Pump power	3.0Kw	3.0Kw	3.0Kw	3.0Kw
Pump speed	0~3000rpm	0~3000rpm	0~3000rpm	0~3000rpm
Agitator power	1.75Kw	1.75Kw	2.5Kw	3.0Kw
Agitator speed	0~500rpm	0~500rpm	0~1000rpm	0~1000rpm
Explosion proof	NO

ADVANTAGES:

1) Intelligent control technology, stable ultrasonic energy output,stable work for 24 hours per day.

2) Automatic frequency tracking mode, ultrasonic transducer working frequency real-time tracking.

3) Multiple protection mechanisms to extend service life to more than 5 years.

4) Energy focus design, high output density, improve efficiency to 200 times in the suitable area.

5) Support static or cyclic working mode .

Trade Information

Payment Terms
Days after Acceptance (DA), Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash Advance (CA)
Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Central America, South America, Asia, North America, Australia
